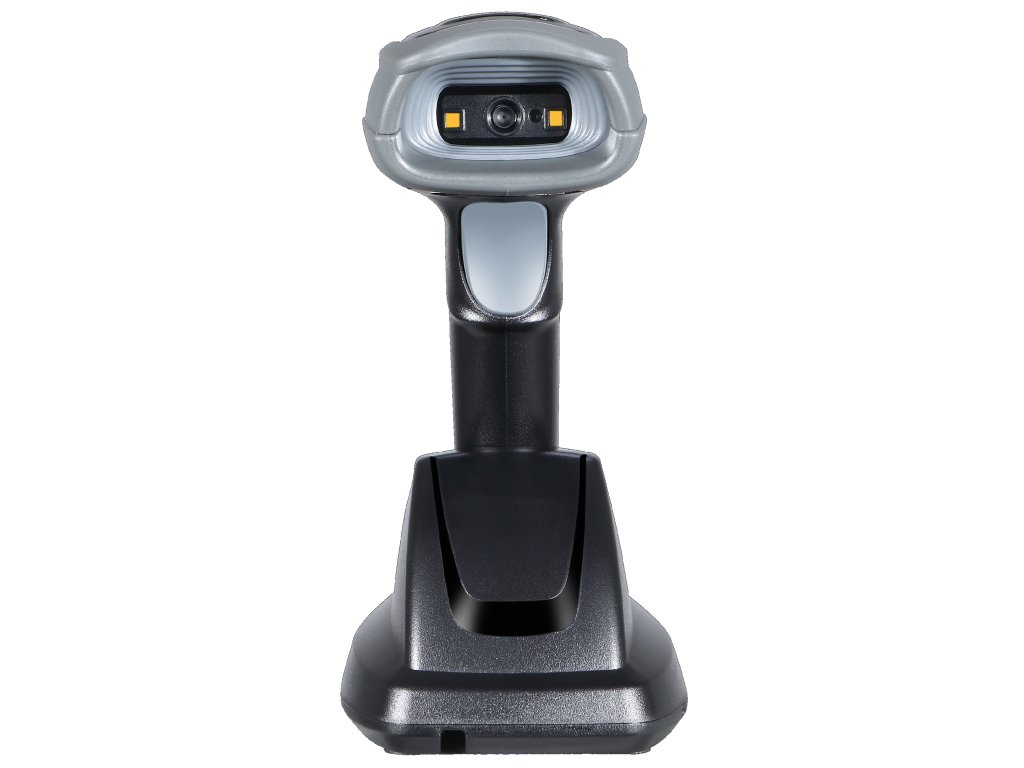

THEMIS TS-260 Bluetooth
Kód: 411Detailní popis produktu
Item |
TS-150 |
TS-260 |
|---|---|---|
| Dimensions | 170mm (W) x 83mm (D) x 70mm (H) | |
| Weight | 201g | 222g |
| Input Voltage | 4.75V – 6.5V DC | |
| Power Requirement | Operating: 90mA Transmitting:150mA Standby: 12mA |
Operating: 230mA Transmitting: 160mA Standby: 20mA |
| Radio Transmission |
RF 430.5 ~ 432.0MHz, 433.05 ~ 434.79MHz 2.4GHz Bluetooth Class II (V2.1 EDR) (option) |
|
| Working Range | Up to 200m (open air) | |
| Environment | Operating: Storage: Temperature: 0°C ~ +50°C -40°C ~ +60°C Humidity: 5% ~ 95% 5% ~ 95% |
|
| Drop Resistance | Multiple 1.5m drops to concrete | |
| IP-Class | IP52 | |
| Barcode Types | All major 1D and GS1 DataBar | All major 1D, GS1 DataBar, 2D, DPM |
| Scan Rate | 200 scans/sec. | 752 x 480 pixel area image 60 frames/sec. |
| Reading Indicator | Beeper, LED | |
| Scanning Angle | ± 60°, ± 65°, ± 42° (skew, pitch, roll) |
± 60°, ± 40°, ± 360° (skew, pitch, roll) |
| Depth of Field | 5 mil 40-110mm 10 mil 10-280mm 13 mil 15-315mm 16 mil 25-385mm 35 mil 145-630mm |
3.5 mil Code 128 (9 char.) 15-35mm 5 mil Code 39 (20 char.) 8-55mm 13 mil UPC (12 char.) 7-165mm 20 mil Code 39 (5 char.) 35-210mm 6.7 mil PDF 417 (20 char.) 0-75mm 10 mil DM (20 char.) 0-115mm 20 mil QR (20.char) 0-195mm |
| Light Source | 650nm visible laser diode | |
| Battery | Rechargeable Lithium-ion battery 1400mAh | |
| Charge Time | Fully charged (> 80%) 3.5 hours | |
| Working Time | 21 hours | 29 hours |
| Standby Time | Over 7 days | |
| Certification | CE, LVD | |
| Options | USB, PS/2, RS-232 interface selectable, Bluetooth | |
| Accessories | Cradle | |
| Color | Gray | |
Doplňkové parametry
| Kategorie: | Scannery |
|---|---|
| Záruka: | 2 roky |
